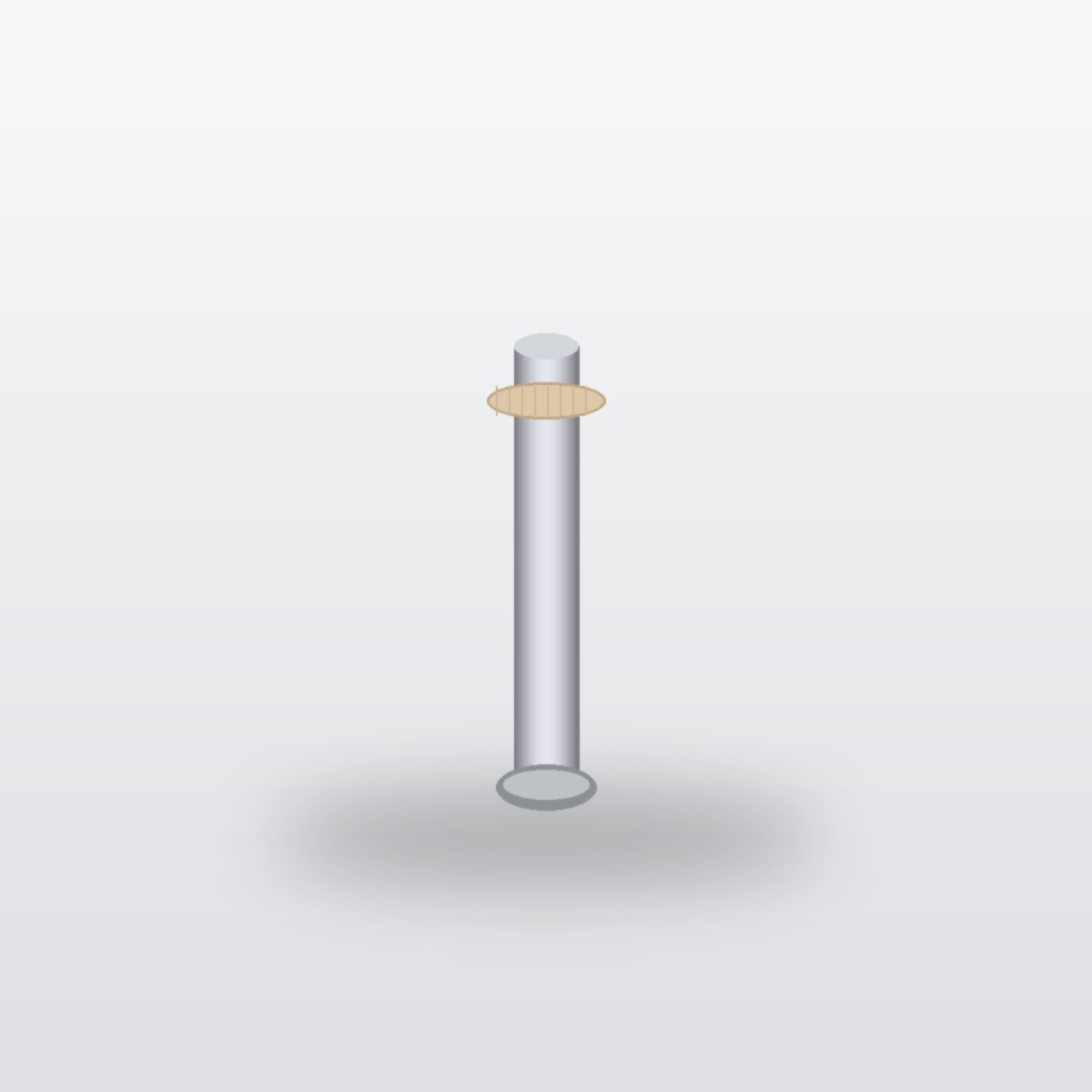

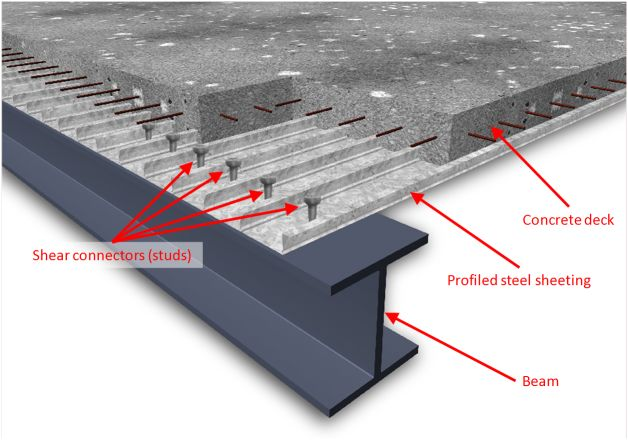

Smart Skill shear studs (welded shear connectors) mechanically bond the concrete slab to the steel beam in composite floor construction, transferring shear forces between the two materials.
Technical Specifications
- Material: Carbon steel
- Welding standard: AWS D1.1 welding code
- Ferrule: Ceramic ferrule included for a clean arc-stud weld on site
- Rated shear strength: 400 MPa
- Sizes available (diameter × height): 19×75mm, 19×100mm, 19×125mm, 19×150mm
- Pricing: Sold per piece, excludes 15% VAT
Choose the size that suits your deck profile and slab depth.
Installation Guide
1. Position the shear stud on the marked location through the metal deck onto the steel beam flange.
2. Insert the ceramic ferrule collar around the stud base to shield the weld arc.
3. Weld using an approved arc-stud welding gun per AWS D1.1 procedures.

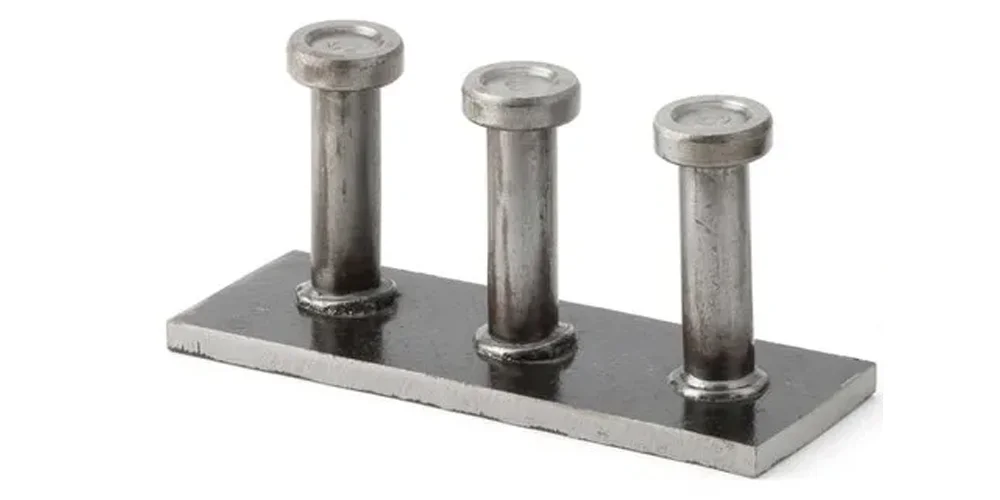

4. Remove the ferrule once the weld has cooled and inspect the weld collar for a full 360° fillet.
5. Space studs as specified in the structural drawings before pouring the composite slab.
Delivery Info
Delivery is quoted separately based on your region and order quantity — it is not calculated automatically at checkout. After placing your order, our team will contact you with a delivery quote and estimated timeline.
For urgent orders or bulk project quotes, contact us directly via WhatsApp or email.
